Creating High-Quality 3D Car Models: A Technical Deep Dive

The world of 3D car modeling is a fascinating intersection of art and technology. Whether you’re aiming for photorealistic automotive rendering, creating immersive game assets, preparing models for 3D printing, or developing compelling AR/VR experiences, the key to success lies in understanding the intricate details that go into crafting a believable and technically sound 3D car model. This comprehensive guide will walk you through the essential aspects of 3D car modeling, covering everything from topology and UV mapping to PBR materials, rendering techniques, and optimization strategies. You’ll learn industry best practices, common pitfalls to avoid, and actionable tips to elevate the quality of your 3D car models. Platforms like 88cars3d.com offer a fantastic starting point, providing access to a vast library of pre-made, high-quality 3D car models that can be used as inspiration or integrated directly into your projects.

I. Topology: The Foundation of a Good 3D Car Model

Topology, the arrangement of edges, faces, and vertices in a 3D model, is arguably the most critical aspect of creating a high-quality 3D car model. Clean, efficient topology ensures smooth surfaces, predictable deformation, and optimized performance. Incorrect topology can lead to visual artifacts, shading errors, and difficulties in rigging and animation.

A. Edge Flow and Surface Curvature

The primary goal of good topology is to accurately represent the curvature of the car’s surfaces. This is achieved by carefully controlling the flow of edges. Avoid long, stretched polygons, especially on curved surfaces. Instead, use a dense network of quads (four-sided polygons) to define the shape accurately. Aim for an even distribution of polygons, with denser areas in regions of high curvature and less density in flatter areas. For instance, the area around the wheel arches and the hood often requires a higher polygon density than the flat roof panel. In general, aim for an average polygon size of around 5cm x 5cm for a detailed automotive model.

B. Avoiding N-Gons and Triangles

While modern 3D software can handle n-gons (polygons with more than four sides) and triangles, they can often cause issues with shading and deformation. N-gons can create unpredictable shading artifacts, especially when using subdivision surfaces. Triangles, while sometimes unavoidable, can create hard edges and distortion, particularly during animation. The best practice is to stick to quads as much as possible. If you must use triangles, try to distribute them evenly and strategically in areas that are less visible or less likely to deform. If converting models for real-time use, be aware that the engine will often convert all polygons to triangles, so optimize accordingly by keeping triangle counts to a minimum.

C. Polygon Count Considerations

The ideal polygon count for a 3D car model depends heavily on its intended use. For high-resolution automotive rendering, a polygon count of 500,000 to several million polygons is common. For game assets, the polygon count needs to be significantly lower, typically ranging from 50,000 to 150,000 polygons for an exterior model, and even less for interior components. For AR/VR applications, further optimization is required, often involving polygon reduction techniques and the use of LODs (Levels of Detail). When sourcing models from marketplaces such as 88cars3d.com, pay close attention to the specified polygon count and ensure it aligns with your project requirements.

II. UV Mapping: Unwrapping the Complexity

UV mapping is the process of unwrapping a 3D model’s surface onto a 2D plane, allowing you to apply textures to it. Effective UV mapping is crucial for achieving realistic and detailed surface appearances. Poor UV mapping can lead to texture stretching, seams, and distorted details, significantly detracting from the model’s realism.

A. Seam Placement Strategies

Careful placement of seams is essential for minimizing texture distortion. The goal is to create UV islands that are as flat and distortion-free as possible. Hidden areas, such as the underside of the car or the interior, are ideal locations for seams. For complex surfaces like the hood or roof, consider using multiple seams that follow the natural curves of the car. Utilize tools like UV pinning and relaxing to further reduce distortion within each UV island. A common technique is to use a checkerboard texture during the UV mapping process to visually identify areas of stretching or distortion.

B. UV Island Packing and Optimization

Efficient UV island packing is critical for maximizing texture resolution. Aim to fill the UV space as much as possible, leaving minimal empty space between UV islands. Avoid overlapping UV islands, as this will cause textures to be applied incorrectly. Consider using specialized UV packing tools or scripts to automate the process and optimize the arrangement of UV islands. Remember to maintain consistent texel density across all UV islands to ensure uniform texture resolution throughout the model. For instance, the texel density for the body panels should be similar to the texel density for smaller components like door handles or mirrors.

C. Using UDIMs for High-Resolution Texturing

For extremely detailed texturing, consider using UDIMs (UV Dimension). UDIMs allow you to divide the UV space into multiple tiles, effectively increasing the available texture resolution. This is particularly useful for large, complex models where a single UV space would be insufficient to capture all the necessary detail. For example, you could assign one UDIM tile to the body panels, another to the interior, and a third to the wheels and tires. This approach allows for the use of extremely high-resolution textures without sacrificing overall performance.

III. PBR Materials and Shading

Physically Based Rendering (PBR) materials are a set of shading techniques that simulate the interaction of light with real-world surfaces in a physically accurate way. Using PBR materials is essential for achieving realistic and believable surface appearances in 3D car models. Understanding the different PBR parameters and how they affect the final look is crucial for creating compelling visuals.

A. Understanding PBR Parameters: Albedo, Roughness, Metallic

The core PBR parameters include Albedo (base color), Roughness (surface smoothness), and Metallic (whether the surface is metallic or non-metallic). Albedo defines the color of the surface without any specular reflections. Roughness controls the diffuseness of the reflections; a rougher surface will have broader, more diffuse reflections, while a smoother surface will have sharper, more specular reflections. The Metallic parameter determines whether the surface is a metal or a dielectric (non-metal). Metals typically have a metallic value of 1.0, while non-metals have a value of 0.0. Properly setting these parameters is crucial for establishing the fundamental material properties.

B. Creating Realistic Car Paint Materials

Creating realistic car paint materials requires careful attention to detail. Car paint typically consists of multiple layers, including a base coat, a clear coat, and often metallic flakes. To replicate this in 3D, you can use a layered material approach. The base coat can be represented by the Albedo color. The clear coat can be simulated using a separate specular layer with a low roughness value. Metallic flakes can be added using a normal map or a separate scattering layer. Experiment with different blend modes and shader networks to achieve the desired effect. The index of refraction (IOR) is also an important factor; clear coat typically has an IOR of around 1.5.

C. Shader Networks and Material Complexity

Complex materials often require intricate shader networks. These networks allow you to combine multiple textures, masks, and mathematical operations to create highly customized shading effects. For example, you could use a shader network to create a worn or weathered appearance on the car’s paint, by blending a grunge texture with the base color and roughness values. Using shader networks effectively requires a strong understanding of node-based material editors and the various shader nodes available. Tools like Substance Designer and Quixel Mixer can be invaluable for creating complex and realistic PBR materials.

IV. Rendering Workflows: Bringing Your Car Model to Life

Rendering is the process of generating a 2D image from a 3D scene. Choosing the right rendering engine and understanding its specific features and settings is critical for achieving high-quality, photorealistic results. Different rendering engines offer different strengths and weaknesses, so it’s important to select one that is well-suited to your project’s requirements.

A. Corona Renderer: Achieving Photorealism with Ease

Corona Renderer is a popular choice for automotive rendering due to its ease of use and ability to produce photorealistic results. Corona’s intuitive interface and physically accurate lighting model make it relatively easy to achieve stunning visuals. Key features include its robust material editor, interactive rendering capabilities, and efficient sampling algorithms. When using Corona, pay close attention to the lighting setup. Using a combination of HDRIs and area lights can create realistic and natural-looking illumination. Experiment with different camera settings, such as depth of field and motion blur, to further enhance the realism of your renders.

B. V-Ray: Industry-Standard for Production Rendering

V-Ray is another industry-standard rendering engine that is widely used for automotive visualization. V-Ray offers a vast array of features and options, allowing for precise control over the rendering process. V-Ray’s adaptive sampling algorithm and advanced material editor make it a powerful tool for creating complex and highly detailed renders. When using V-Ray, optimizing the rendering settings is crucial for achieving fast render times without sacrificing quality. Consider using V-Ray’s denoiser to reduce noise and improve image clarity. The physical camera settings in V-Ray also allow for accurate control of exposure, depth of field, and motion blur.

C. Blender Cycles: Open-Source Powerhouse

Blender Cycles is a free and open-source rendering engine that is increasingly gaining popularity in the automotive industry. Cycles offers a physically based rendering engine with support for a wide range of features, including ray tracing, global illumination, and advanced material shaders. Cycles’ node-based material editor provides a flexible and powerful way to create complex PBR materials. The strength of Cycles lies in its integration with Blender’s comprehensive 3D modeling and animation tools. Optimizing Cycles renders involves careful management of light paths, sample counts, and geometry complexity.

V. Game Engine Optimization: Performance is Key

When using 3D car models in game engines like Unity or Unreal Engine, performance optimization is paramount. High-polygon models, unoptimized textures, and complex shaders can lead to significant performance issues, resulting in low frame rates and a poor user experience. Optimizing your 3D car models for game engines involves a variety of techniques, including polygon reduction, texture optimization, LODs, and draw call reduction.

A. Level of Detail (LOD) Systems

LOD systems allow you to create multiple versions of a 3D model with varying levels of detail. The game engine automatically switches between these versions based on the distance from the camera. This allows you to use high-polygon models when the car is close to the camera, and lower-polygon models when it’s further away, reducing the rendering load without sacrificing visual quality. Creating effective LODs involves carefully reducing the polygon count while preserving the overall shape and silhouette of the car. Typically, you might have three to five LOD levels, with each level having approximately 50% fewer polygons than the previous level.

B. Texture Atlasing and Compression

Texture atlasing involves combining multiple textures into a single larger texture. This reduces the number of texture swaps that the game engine needs to perform, improving performance. Texture compression is another important optimization technique. Using compressed texture formats, such as DXT or BC, can significantly reduce the memory footprint of your textures without noticeably degrading visual quality. Aim to keep texture resolutions as low as possible while maintaining acceptable visual fidelity. For example, you might use 2048×2048 textures for the body panels and 1024×1024 textures for smaller components.

C. Draw Call Reduction Techniques

Draw calls are instructions sent from the CPU to the GPU to render objects. Reducing the number of draw calls can significantly improve performance. One way to reduce draw calls is to combine multiple objects into a single mesh. Another technique is to use instancing, which allows you to render multiple instances of the same object with a single draw call. Material optimization also plays a role; using fewer materials and simpler shaders can reduce the rendering overhead. Batching static objects in the scene can further reduce draw calls. Aim to keep the draw call count below 1000 for a single car model in a complex scene.

VI. File Format Conversions and Compatibility

Different 3D software packages and game engines use different file formats. Understanding the various file formats and their respective strengths and weaknesses is essential for ensuring compatibility and efficient workflows. Common file formats for 3D car models include FBX, OBJ, GLB, and USDZ.

A. FBX: The Industry Standard

FBX is a widely supported file format that is commonly used for exchanging 3D data between different software packages. FBX supports a wide range of features, including geometry, materials, textures, animation, and rigging. FBX is a good choice for transferring 3D car models between 3ds Max, Maya, Blender, Unity, and Unreal Engine. When exporting to FBX, pay attention to the export settings, such as the coordinate system and the tangent space calculation method, to ensure that the model is imported correctly into the target software.

B. OBJ: Simple and Versatile

OBJ is a simple and versatile file format that is supported by virtually all 3D software packages. OBJ only supports geometry, materials, and textures; it does not support animation or rigging. OBJ is a good choice for exporting static 3D car models for rendering or 3D printing. When exporting to OBJ, ensure that the material and texture paths are correctly specified to avoid issues with texture loading.

C. GLB and USDZ: Formats for AR/VR

GLB and USDZ are file formats that are specifically designed for AR/VR applications. GLB is a binary file format that is based on the glTF (GL Transmission Format) standard. USDZ is a file format that was developed by Pixar and Apple. Both GLB and USDZ are optimized for real-time rendering and efficient loading on mobile devices. These formats are ideal for displaying 3D car models in AR/VR environments. When exporting to GLB or USDZ, pay close attention to the texture compression settings and the polygon count to ensure optimal performance on the target device.

VII. 3D Printing Preparation and Mesh Repair

Preparing a 3D car model for 3D printing requires careful attention to detail. 3D printing requires a closed, watertight mesh with no holes, non-manifold geometry, or intersecting faces. Mesh repair is often necessary to fix these issues and ensure a successful print. Tools like Meshmixer, Netfabb, and Blender’s 3D Printing Toolbox can be invaluable for this process.

A. Identifying and Fixing Non-Manifold Geometry

Non-manifold geometry refers to edges or faces that are shared by more than two polygons. This can cause issues with 3D printing, as the slicer software may not be able to correctly interpret the geometry. Common causes of non-manifold geometry include overlapping faces, internal faces, and zero-thickness geometry. Mesh repair tools can automatically identify and fix these issues by removing overlapping faces, merging vertices, and filling gaps.

B. Ensuring a Watertight Mesh

A watertight mesh is a closed surface with no holes or gaps. This is essential for 3D printing, as the slicer software needs to be able to determine the inside and outside of the model. Holes can be filled using mesh repair tools by selecting the boundary edges and creating new faces to close the gap. Ensure that the normals are correctly oriented after filling holes to avoid issues with the printing process. For detailed areas like grilles, consider simplifying the geometry to ensure printability.

C. Optimizing for Print Resolution and Material

The optimal level of detail for a 3D printed car model depends on the printing resolution and the material being used. Higher resolution printers can capture finer details, while lower resolution printers require simpler geometry. Thinner sections of the model may require thickening to ensure structural integrity. Consider the shrinkage rate of the material being used and adjust the model’s dimensions accordingly. Support structures may be necessary to support overhanging features during printing. Experiment with different printing orientations to minimize the need for support structures and improve surface finish.

Conclusion

Creating high-quality 3D car models is a complex but rewarding process. By mastering the techniques discussed in this guide, you can create stunning visuals for rendering, compelling assets for games, and accurate models for 3D printing and AR/VR applications. Remember the importance of clean topology, accurate UV mapping, realistic PBR materials, and efficient optimization strategies. Continuously practice and refine your skills, and don’t be afraid to experiment with different techniques and tools. Leverage resources like online tutorials, forums, and marketplaces like 88cars3d.com to learn from other artists and access a wide range of high-quality 3D car models. Start with a simple model and gradually increase the complexity as you become more confident. The key is to be patient, persistent, and always strive to improve your skills.

“`

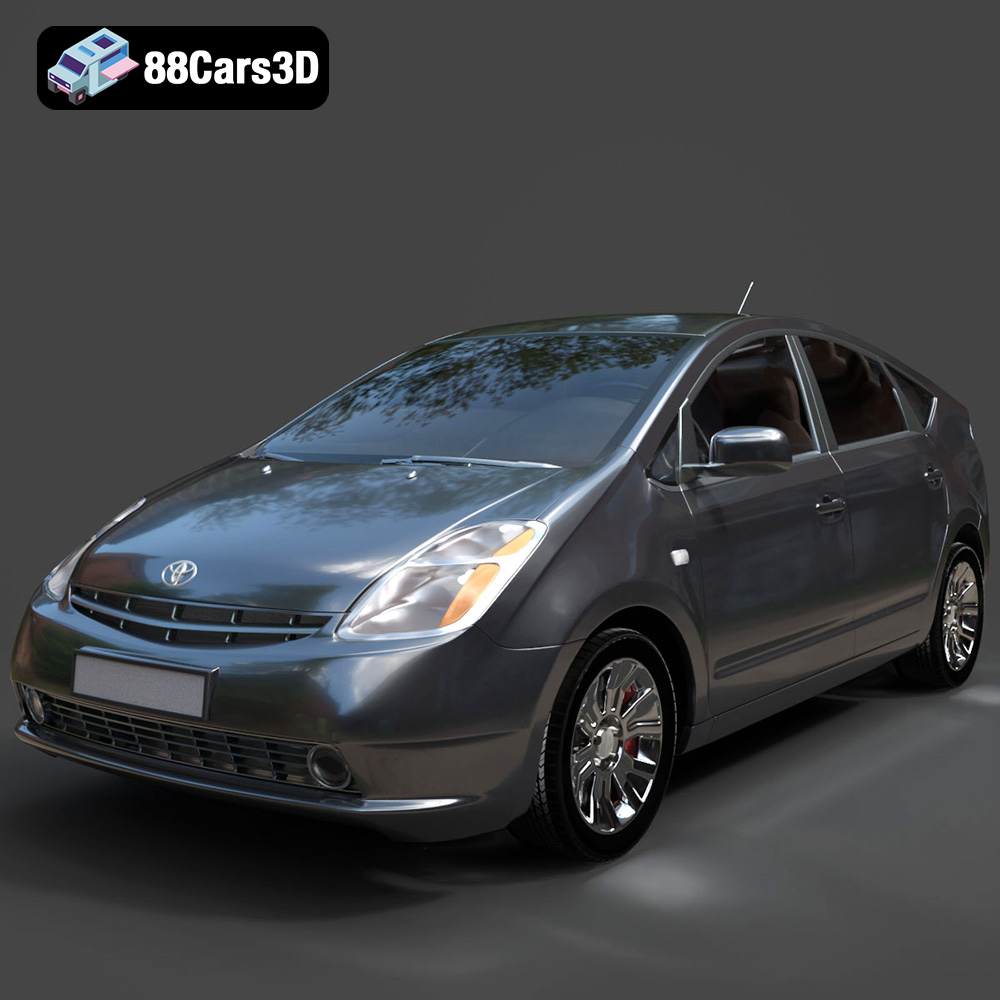

Featured 3D Car Models
